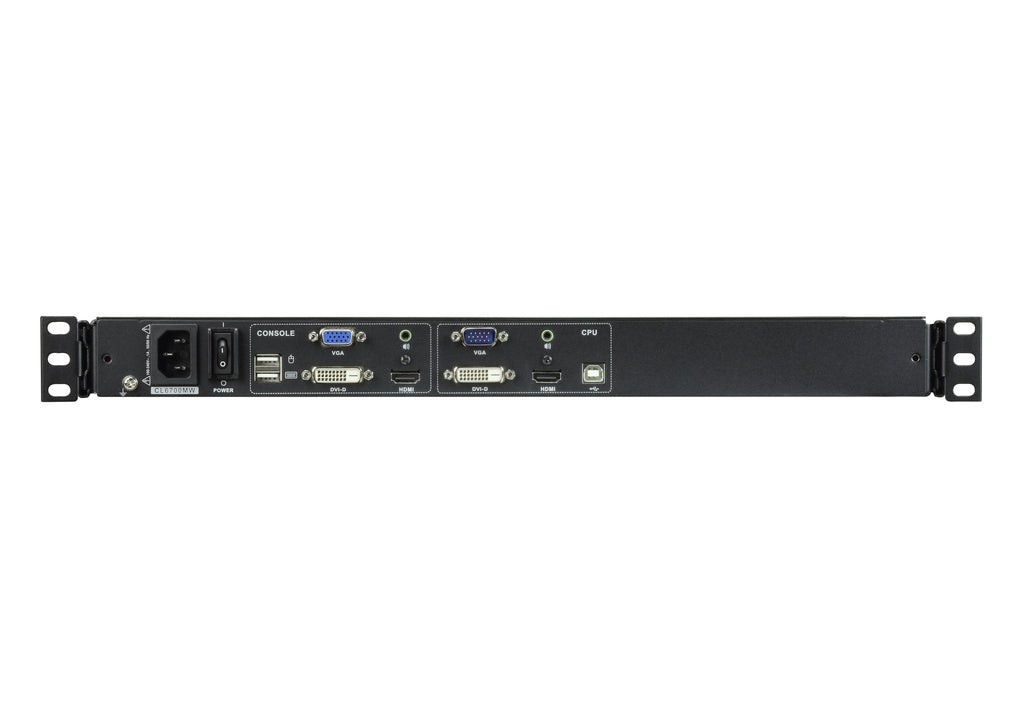

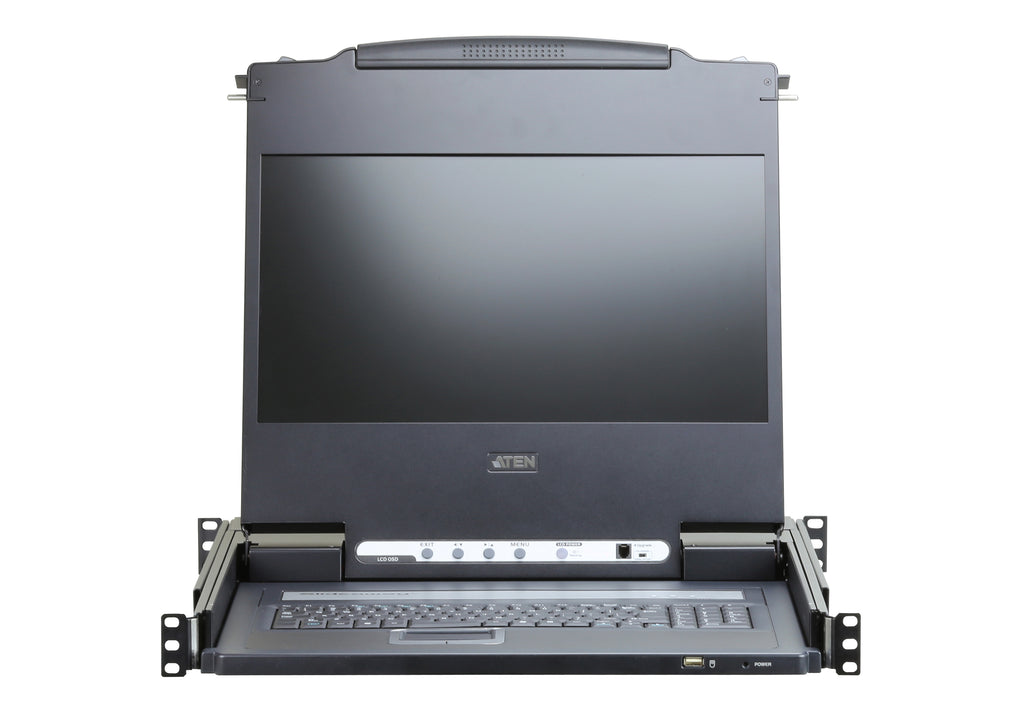

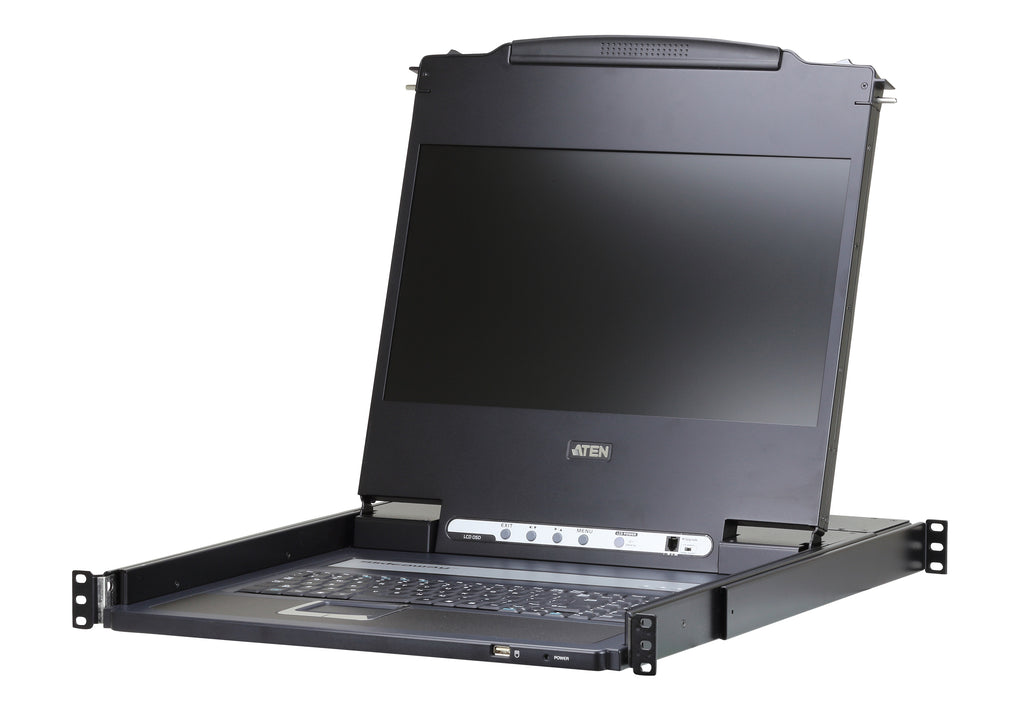

ATEN CL6700MW — Single‑Rail Full HD LCD KVM Console (HDMI / DVI / VGA)

17.3” Full HD (CL6700MW) • USB Keyboard/Touchpad • 1U Rackmount

The ATEN CL6700MW is a professional single‑rail LCD KVM console designed for front‑end access to servers, server rooms, and enterprise environments that need quick, space‑efficient access to existing KVM switches. It integrates a 17.3” Full HD 1920×1080 widescreen LCD, full keyboard, and touchpad into a 1U sliding rackmount housing, providing clean, convenient console access without requiring a new KVM switch.

The CL6700MW supports HDMI, DVI, and VGA video input, making it one of the most flexible rack consoles available for mixed‑generation server environments. It supports an external console (USB keyboard/mouse/monitor), includes audio ports, USB peripheral pass‑through, and features LED keyboard illumination for low‑light environments.

Key Features

• Single‑rail LCD KVM console with integrated keyboard & touchpad

• 17.3” Full HD 1920×1080 LED‑backlit LCD

• Multiple video input: HDMI, DVI, VGA

• External console support: USB keyboard/mouse + HDMI/DVI/VGA monitor

• Hot‑pluggable USB mouse port on front panel

• Audio support (stereo mini jack)

• 1U rackmount sliding housing

• LED illumination light for keyboard/touchpad visibility

• Multiplatform support: Windows, Linux, Mac, Sun

• Firmware upgradeable

Technical Specifications

• Display: 17.3” Full HD 1920×1080 @ 60Hz

• Video Input: HDMI, DVI, VGA

• External Console Ports: USB keyboard, USB mouse, HDMI/DVI/VGA monitor

• USB Ports: USB Type‑A (peripheral), USB Type‑B (console)

• Audio: 2 mini stereo ports (front & rear)

• Rackmount: Standard kit included; optional easy‑install kits available

Ideal Use Cases

• Data centers & enterprise server rooms

• Environments with existing KVM switches needing front‑end access

• Multi‑server racks with limited space

• Secure server access without adding a new KVM switch

• IT maintenance stations & NOC environments

What’s Included

(Based on ATEN standard packaging)

• CL6700MW console

• Standard rackmount kit

• USB/KVM cable set

• Power cord

• User documentation

Compliance & Warranty

• Compliance: FCC

• Warranty: ATEN Limited Hardware Warranty
