Remote Power Control • Per‑Outlet Monitoring • 1U Rackmount • SNMP/HTTP/HTTPS • Energy Management • ATEN Eco Sensors Compatible

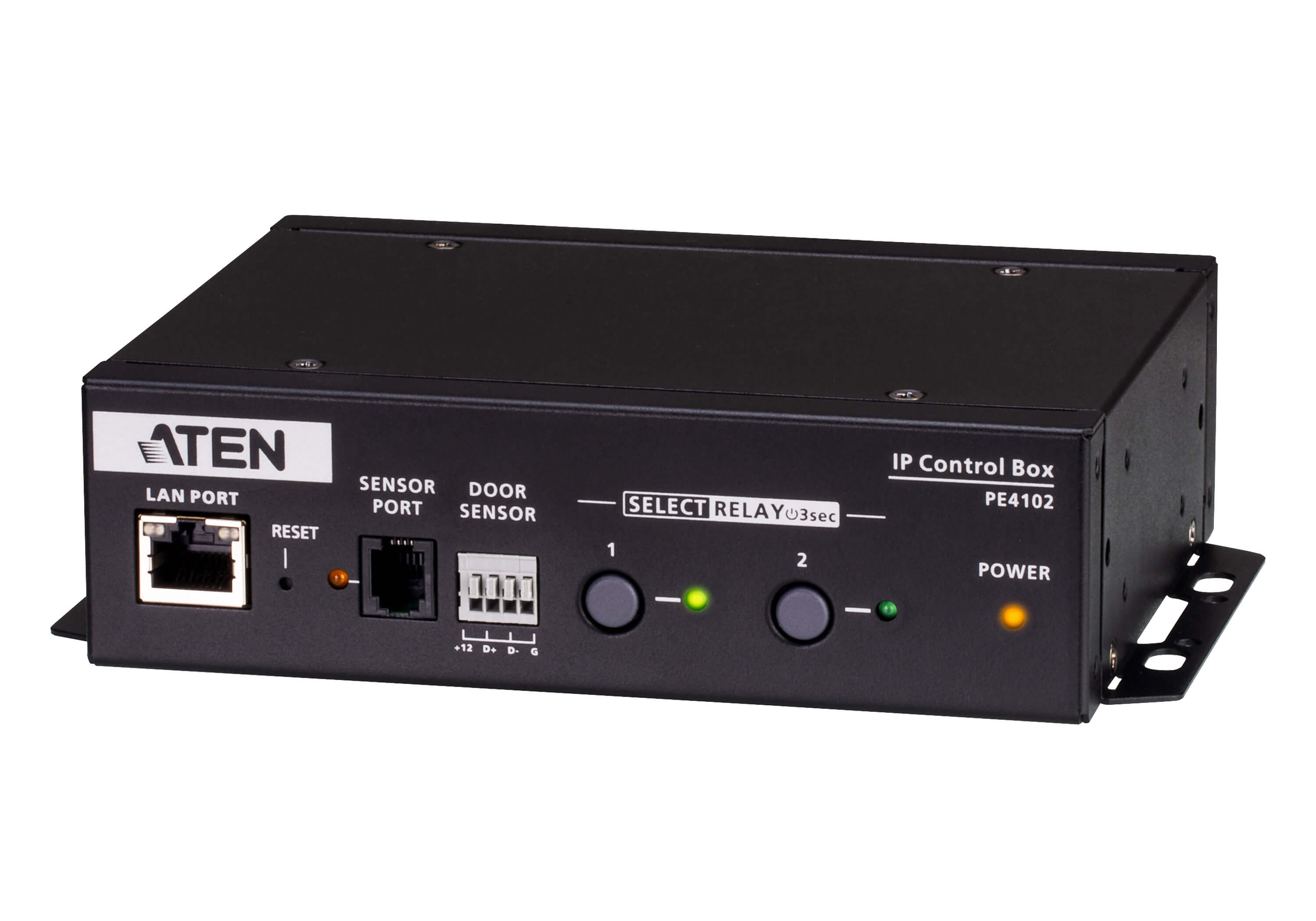

The ATEN PE4102 is a network‑managed, metered‑by‑outlet rack PDU designed for IT, AV, and edge‑infrastructure environments that require remote power control, per‑outlet energy monitoring, and secure, centralized management. With two individually monitored AC outlets, support for SNMP, HTTP/HTTPS, and integration with ATEN’s Eco Sensors energy‑management platform, the PE4102 delivers enterprise‑grade visibility and control in a compact 1U form factor.
Ideal for MSPs, AV integrators, server rooms, IDF closets, and remote sites where uptime, automation, and remote troubleshooting matter.
2‑Outlet Metered‑by‑Outlet PDU with individual outlet monitoring
Remote power control (on/off/reboot per outlet)
Network‑managed via HTTP/HTTPS, SNMP v1/v2c/v3, Telnet, SSH
Per‑outlet current, voltage, power, and energy monitoring
1U rackmount design for server & AV racks
Supports ATEN Eco Sensors for centralized energy management
Overcurrent protection with circuit breaker
Secure access with user accounts, SSL, and role‑based permissions
Event notifications via email, syslog, and SNMP traps
Durable metal chassis for professional installations

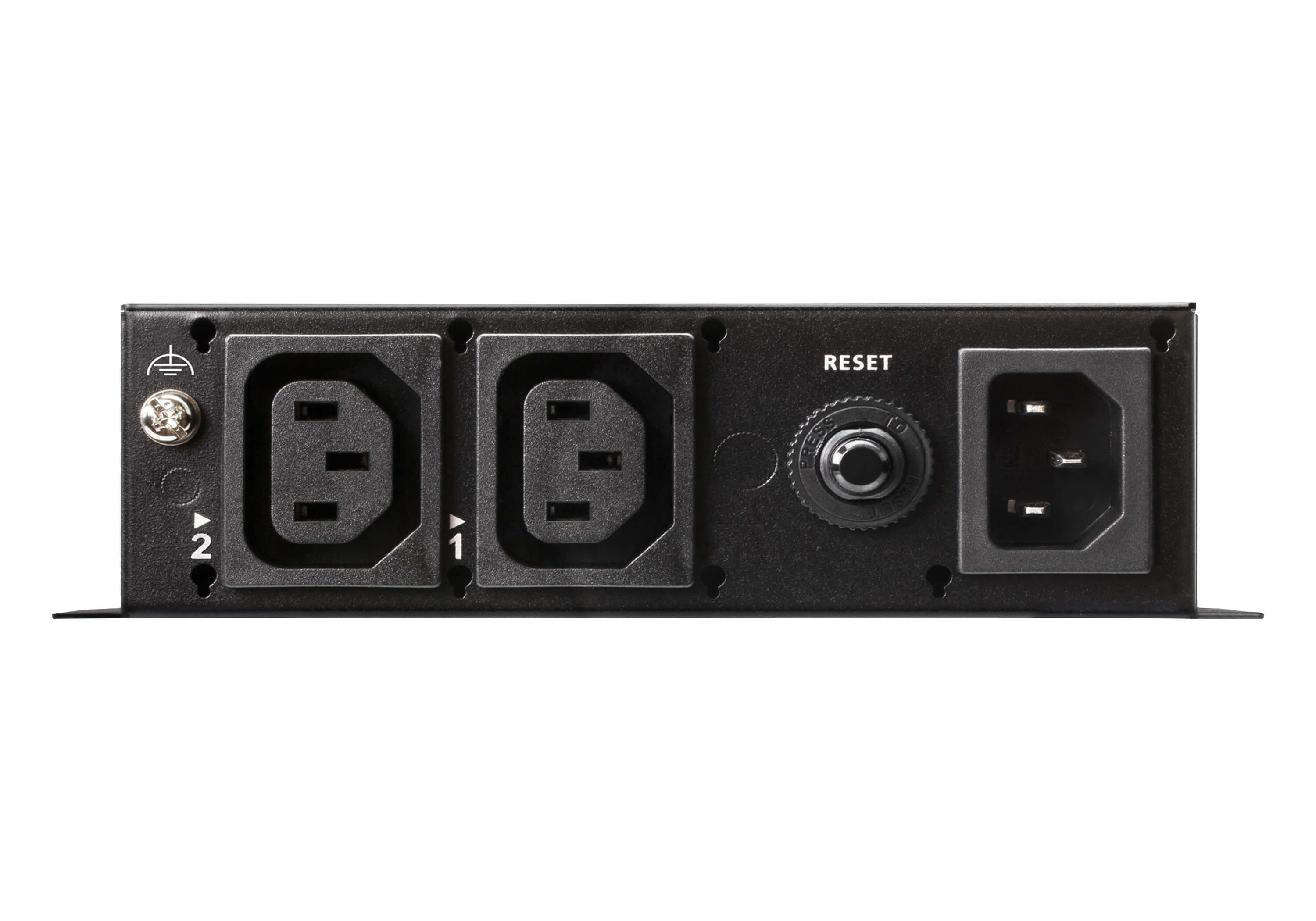

Outlets: 2 × IEC C13
Input: IEC C14
Max Load: 15A
Form Factor: 1U rackmount
Monitoring: Per‑outlet metering (current, voltage, power, energy)
Control: Individual outlet on/off/reboot
Network Protocols: HTTP/HTTPS, SNMP v1/v2c/v3, Telnet, SSH
Management: ATEN Eco Sensors compatible
Security: SSL, user roles, password protection
Enclosure: Metal
Warranty: ATEN 2‑Year Warranty
MSP remote‑management deployments
Server rooms & IDF closets
AV racks & control systems
Edge compute & remote sites
Power monitoring for compliance & reporting
Automated reboot routines for network gear
ATEN PE4102 PDU
Rackmount hardware
Quick‑start documentation
UL / FCC / CE
ATEN 2‑Year Warranty
