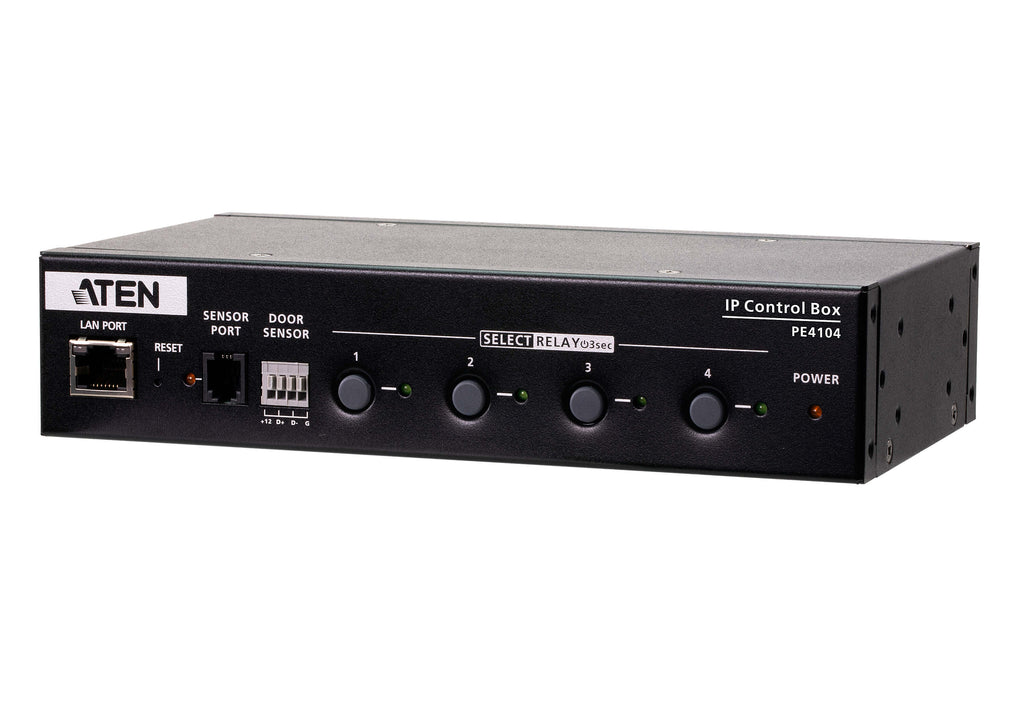

ATEN PE4104 — 4‑Outlet Metered‑by‑Outlet Rack PDU (Remote Power Management, 1U, 15A, Network‑Managed)

Remote Power Control • Per‑Outlet Monitoring • 1U Rackmount • SNMP/HTTP/HTTPS • Energy Management • ATEN Eco Sensors Compatible

The ATEN PE4104 is a network‑managed, metered‑by‑outlet rack PDU designed for IT, AV, and edge‑infrastructure environments that require remote power control, per‑outlet energy monitoring, and secure, centralized management. With four individually monitored AC outlets, support for SNMP, HTTP/HTTPS, and integration with ATEN’s Eco Sensors energy‑management platform, the PE4104 delivers enterprise‑grade visibility and control in a compact 1U form factor.

Ideal for MSPs, server rooms, AV racks, IDF closets, and remote sites where uptime and remote troubleshooting matter.

Key Features

• 4‑Outlet Metered‑by‑Outlet PDU with individual outlet monitoring

• Remote power control (on/off/reboot per outlet)

• Network‑managed via HTTP/HTTPS, SNMP v1/v2c/v3, Telnet, SSH

• Per‑outlet current, voltage, power, and energy monitoring

• 1U rackmount design for server & AV racks

• Supports ATEN Eco Sensors for centralized energy management

• Overcurrent protection with circuit breaker

• Secure access with user accounts, SSL, and role‑based permissions

• Event notifications via email, syslog, and SNMP traps

• Durable metal chassis for professional installations

Technical Specifications

• Outlets: 4 × IEC C13

• Input: IEC C14

• Max Load: 15A

• Form Factor: 1U rackmount

• Monitoring: Per‑outlet metering (current, voltage, power, energy)

• Control: Individual outlet on/off/reboot

• Network Protocols: HTTP/HTTPS, SNMP v1/v2c/v3, Telnet, SSH

• Management: ATEN Eco Sensors compatible

• Security: SSL, user roles, password protection

• Enclosure: Metal

• Warranty: ATEN 2‑Year Warranty

Ideal Use Cases

• MSP remote‑management deployments

• Server rooms & IDF closets

• AV racks & control systems

• Edge compute & remote sites

• Power monitoring for compliance & reporting

• Automated reboot routines for network gear

What’s Included

• ATEN PE4104 PDU

• Rackmount hardware

• Quick‑start documentation

Compliance & Warranty

• UL / FCC / CE

• ATEN 2‑Year Warranty
