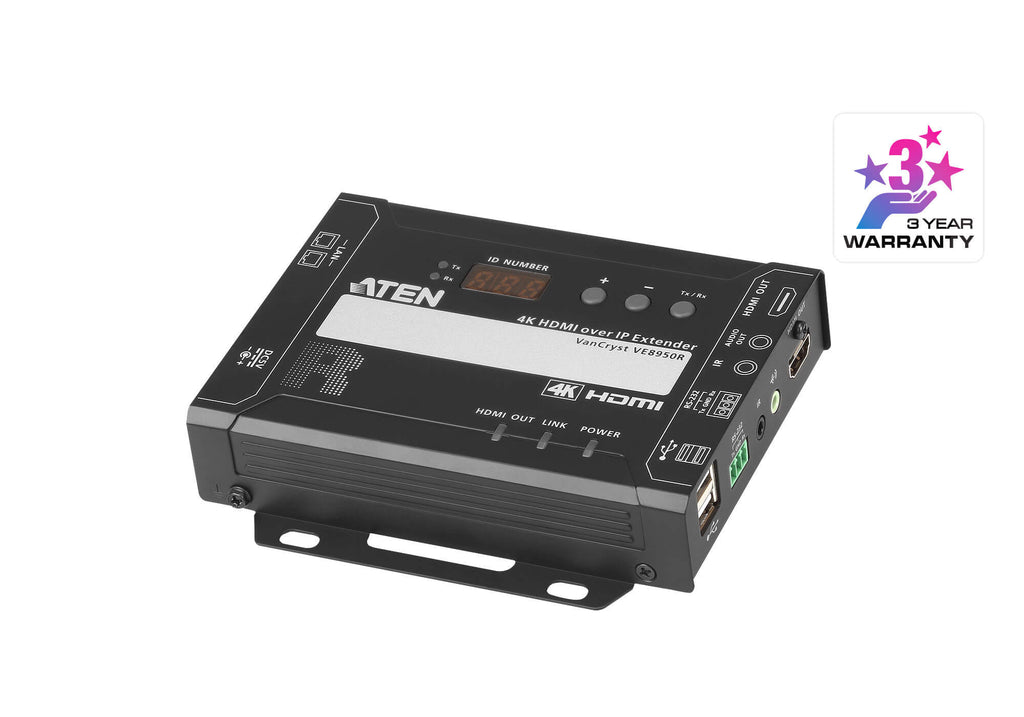

ATEN VE8950R — 4K HDMI over IP Receiver (HDMI over LAN, Video‑over‑IP)

Visually Lossless 4K @ 30Hz • Low‑Latency AV over IP • Daisy‑Chain & Video Wall Support

The ATEN VE8950R is a professional‑grade 4K HDMI over IP receiver designed for scalable digital signage, multi‑display environments, and long‑distance AV distribution over standard Gigabit Ethernet networks. Delivering visually lossless 4K/30 4:4:4 video, ultra‑low latency, and flexible deployment options, the VE8950R enables point‑to‑point, point‑to‑multipoint, and multipoint‑to‑multipoint configurations without requiring complex IP setup or additional servers.

With support for daisy‑chaining, video walls, EDID Expert™, and ATEN’s advanced compression engine, the VE8950R is ideal for airports, campuses, retail signage, command centers, and large‑scale AV‑over‑IP installations.

Key Features

• 4K HDMI over IP receiver with visually lossless 4K @ 30Hz 4:4:4 video quality

• Low‑latency AV distribution over standard Gigabit Ethernet switches

• Scalable architecture — point‑to‑point, point‑to‑multipoint, multipoint‑to‑multipoint

• Daisy‑chain support for extended display deployments and reduced switch port usage

• Video wall support with flexible layout options

• EDID Expert™ for optimal resolution and smooth startup across mixed displays

• No complicated IP setup — plug‑and‑play configuration with auto‑discovery

• Ideal for digital signage, retail, airports, campuses, and multi‑display environments

• Recommended transmitter: ATEN VE8950T (sold separately)

Technical Specifications

• Video Resolution: Up to 4K @ 30Hz (4:4:4) visually lossless

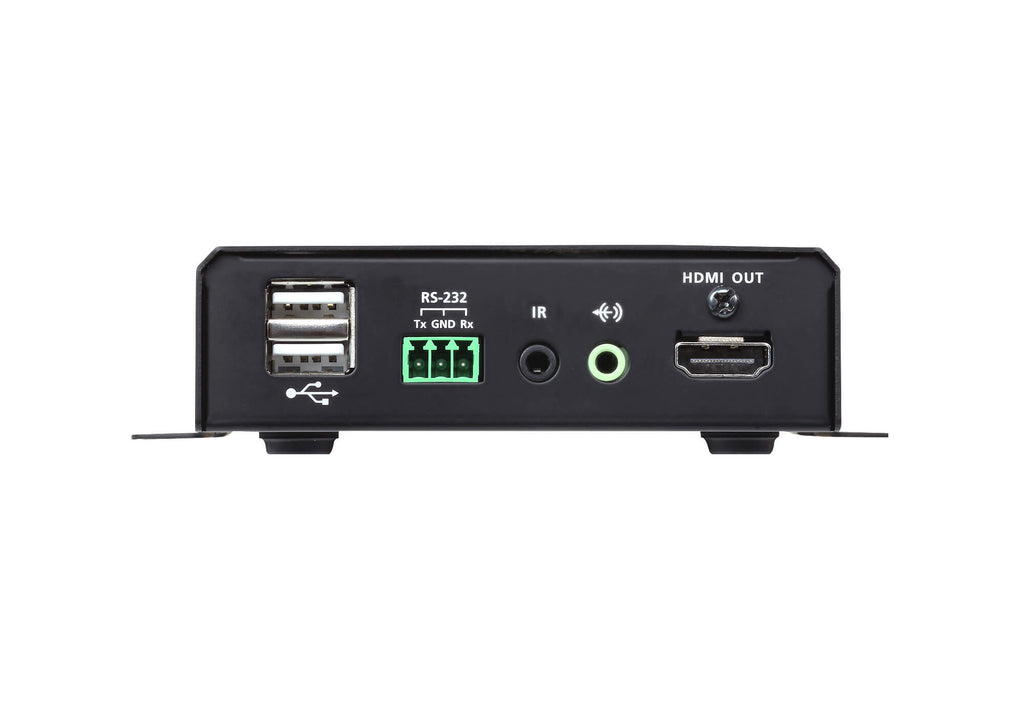

• Interfaces:

  • HDMI input (via network stream)

  • RS‑232 terminal block (control)

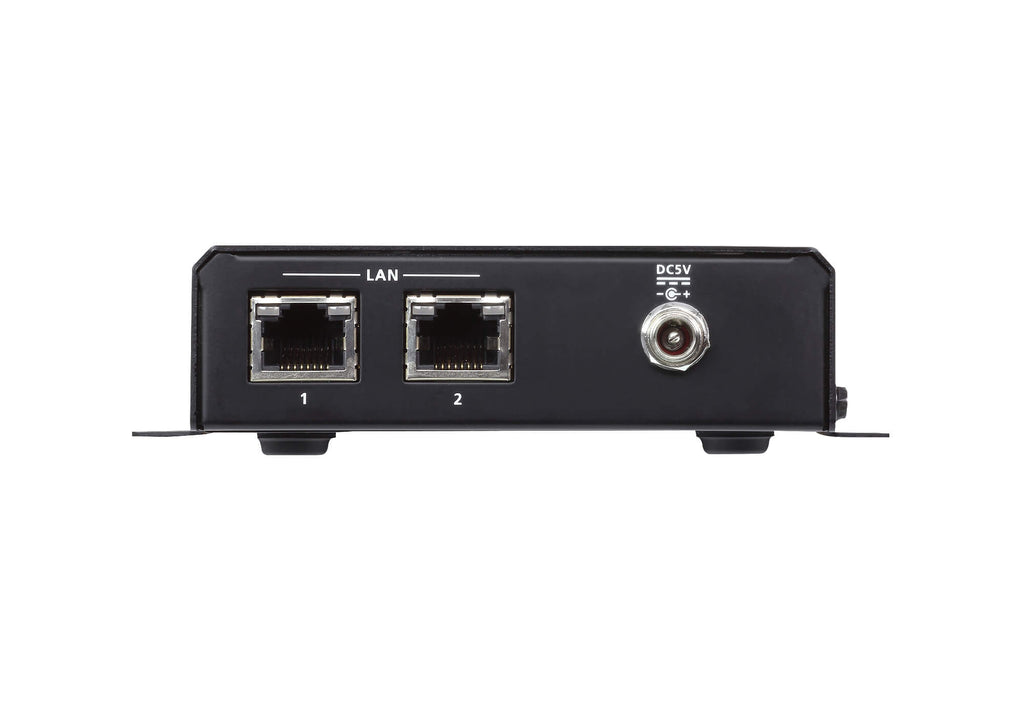

  • Gigabit Ethernet (RJ‑45)

• Compression: ATEN advanced video lossless compression engine

• Network: Standard Gigabit Ethernet switches (no special hardware required)

• Features:

  • Video wall support

  • Daisy‑chain mode

  • EDID Expert™

  • Multiple compression modes (Smooth, Balance, High Quality)

• Package Includes: VE8950R receiver, RS‑232 terminal block, 5V power adapter, user instructions

Ideal Use Cases

• Digital signage networks

• Airports, shopping centers, and retail environments

• University campuses and corporate buildings

• Trade shows and event venues

• Multi‑display control rooms

• Large‑scale AV‑over‑IP deployments requiring flexible routing

What’s Included

• ATEN VE8950R Receiver

• RS‑232 Terminal Block

• 5V Power Adapter

• User Instructions

Compliance & Warranty

• Compliance: FCC

• Warranty: Manufacturer limited hardware warranty (ATEN standard)
