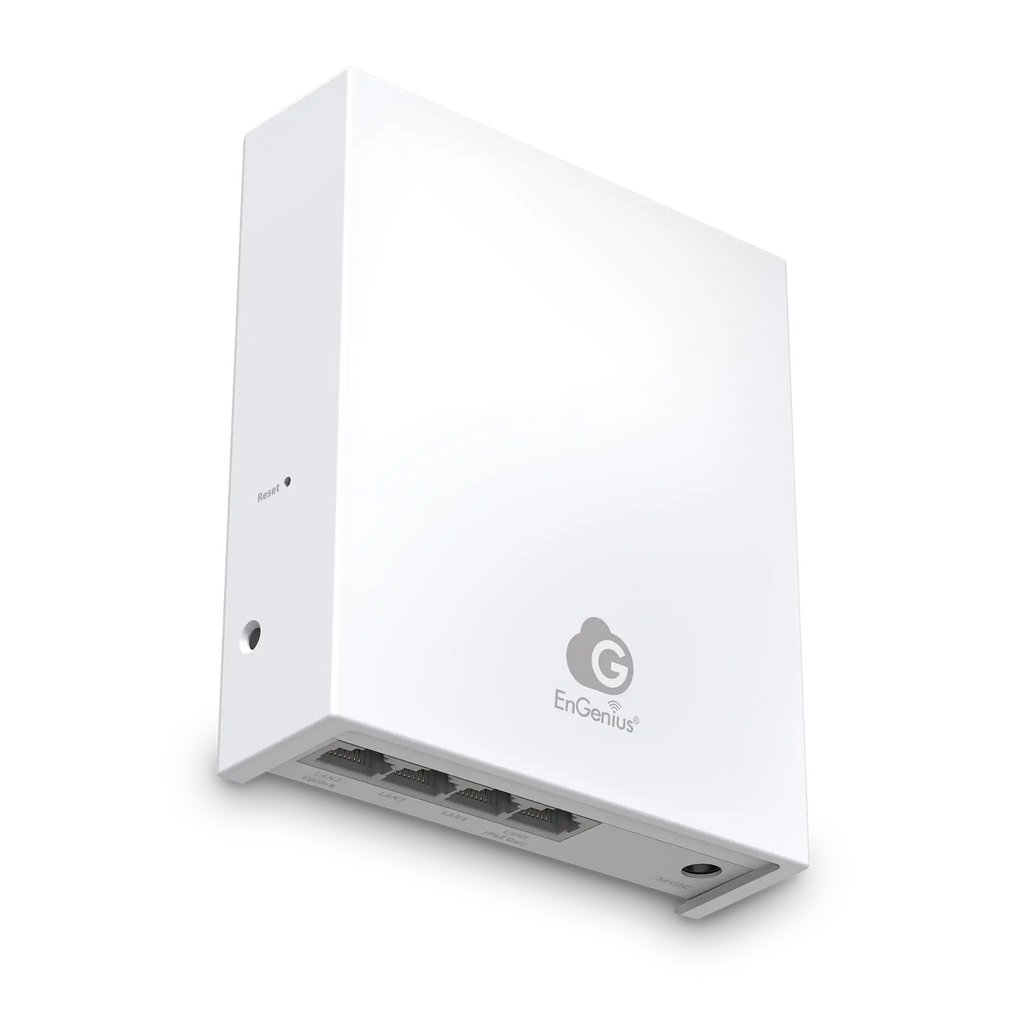

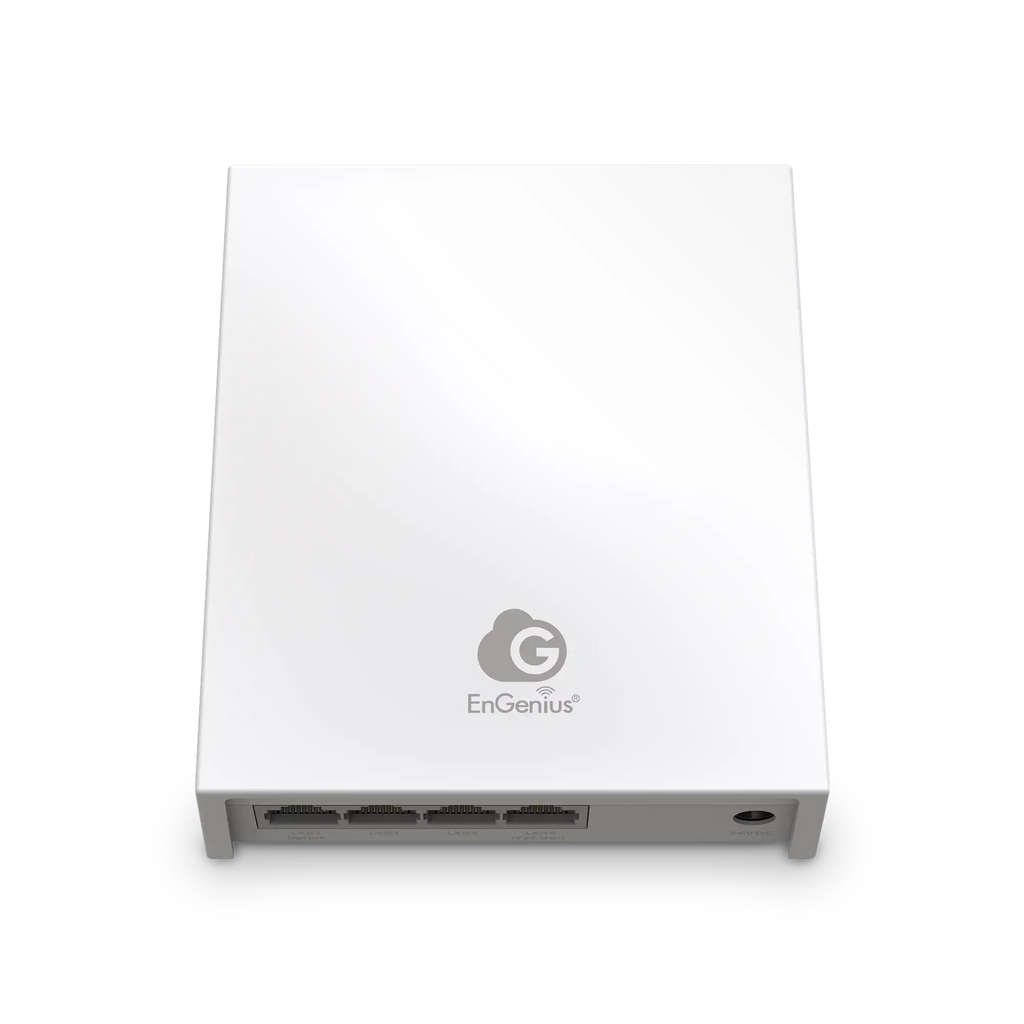

EnGenius ECW515 — Cloud‑Managed Wi‑Fi 7 (2×2) Wall‑Plate Access Point

Wi‑Fi 7 up to 3.6 Gbps • 2.5GbE PoE+ Uplink • 4‑Port Gigabit Switch with PoE‑Out • In‑Room Connectivity

The EnGenius ECW515 is a next‑generation Wi‑Fi 7 (802.11be) 2×2 wall‑plate access point engineered for in‑room wireless and wired connectivity in hospitality, student housing, senior living, MDUs, and modern classrooms. Delivering up to 3.6 Gbps aggregate throughput, the ECW515 brings ultra‑low latency, higher capacity, and improved reliability to dense client environments.

A built‑in 4‑port Gigabit switch with PoE‑out supports IPTV, VoIP phones, set‑top boxes, and room‑based IoT devices. The 2.5GbE PoE+ uplink simplifies installation and ensures full Wi‑Fi 7 performance. Managed through EnGenius Cloud, the ECW515 supports SmartCasting, VLAN‑based room segmentation, and mass multi‑tenant deployment workflows.

Key Features

• Wi‑Fi 7 (802.11be) dual‑band 2×2 with up to 2,900 Mbps (5 GHz) and 700 Mbps (2.4 GHz)

• 2.5GbE PoE+ uplink for high‑speed backhaul and simplified installation

• 4‑port Gigabit switch with PoE‑out for IPTV, VoIP, and in‑room devices

• SmartCasting for secure in‑room TV streaming and guest device isolation

• Supports up to 100 devices per AP with coverage up to 1,000 sq ft

• WPA3/WPA2‑AES, VLAN segmentation, and SSID‑on‑LAN for wired/wireless policy alignment

• Cloud‑managed with remote monitoring, troubleshooting, and mass provisioning

• Mesh support for flexible deployment and self‑healing coverage

Technical Specifications

• Wireless Standard: 802.11be (Wi‑Fi 7), backward compatible with 802.11a/b/g/n/ac/ax

• Radios:

  • 2.4 GHz: up to 700 Mbps, 2×2 EHT40

  • 5 GHz: up to 2,900 Mbps, 2×2 EHT160

• Antenna: Integrated omni antennas (5 dBi) for both bands

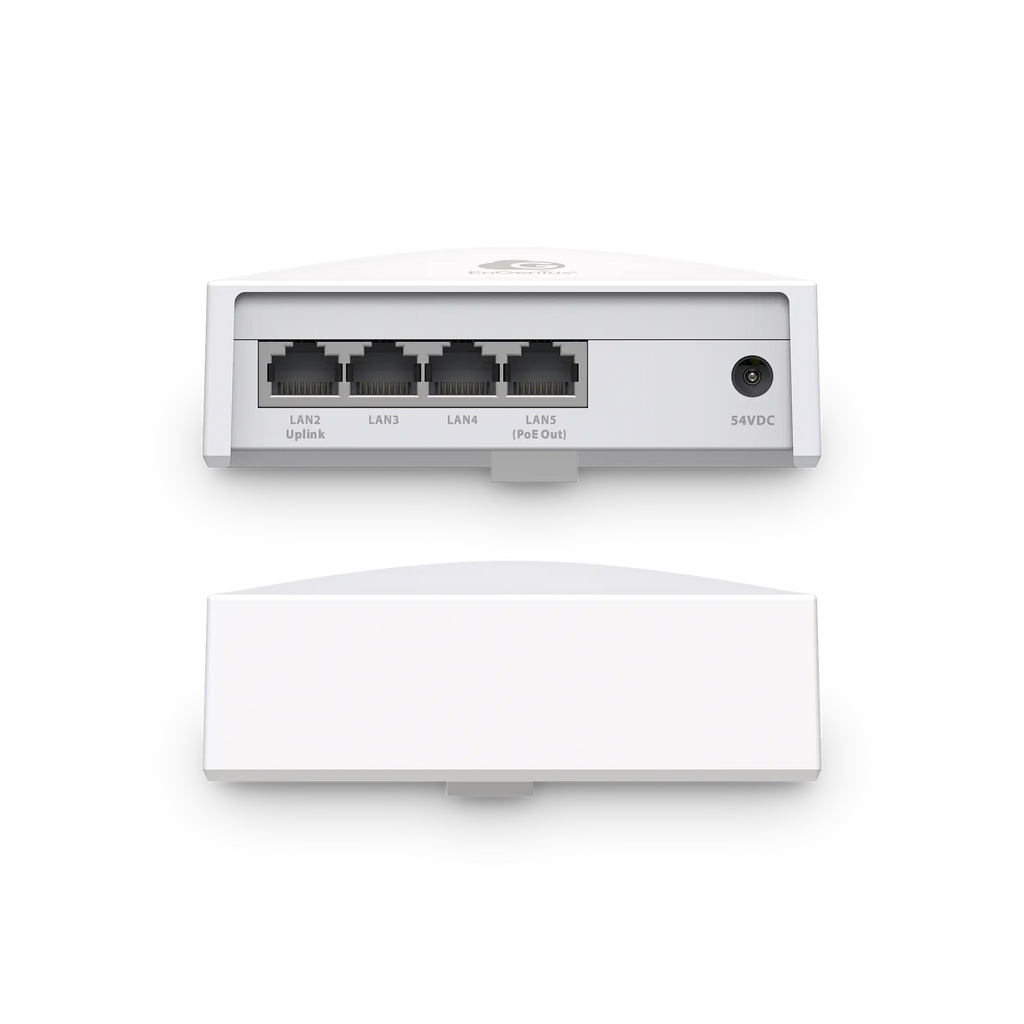

• Ethernet Ports:

  • 1 × 2.5GbE PoE+ uplink

  • 4 × 1GbE LAN with PoE‑out

• Power: 802.3at PoE+ or 54V DC input

• Max Power Consumption: 18W (PoE‑in) / 26W (DC)

• Security: WPA3/WPA2‑AES, VLANs, client isolation

• Management: EnGenius Cloud (web + mobile), AP mode, Mesh mode

• Mounting: Standard wall‑plate / junction box

Ideal Use Cases

• Hotels & hospitality rooms

• Student housing & dormitories

• Senior living & assisted living

• Multi‑tenant apartments (MDU)

• Classrooms & campus buildings

• Any environment requiring in‑room wired + wireless connectivity

What’s Included

• ECW515 Access Point

• Wall‑plate mounting hardware

• Quick Start Guide
