StarTech CABSHELF116V — 1U 16" Deep Vented Rack Shelf (Steel, 19" Rackmount)

When standard 10-12" shelves aren't deep enough for your DVR, NVR, or UPS unit, the CABSHELF116V's 16-inch platform solves the problem without requiring a custom solution — vented steel, 44 lb capacity, fits any standard 19-inch rack.

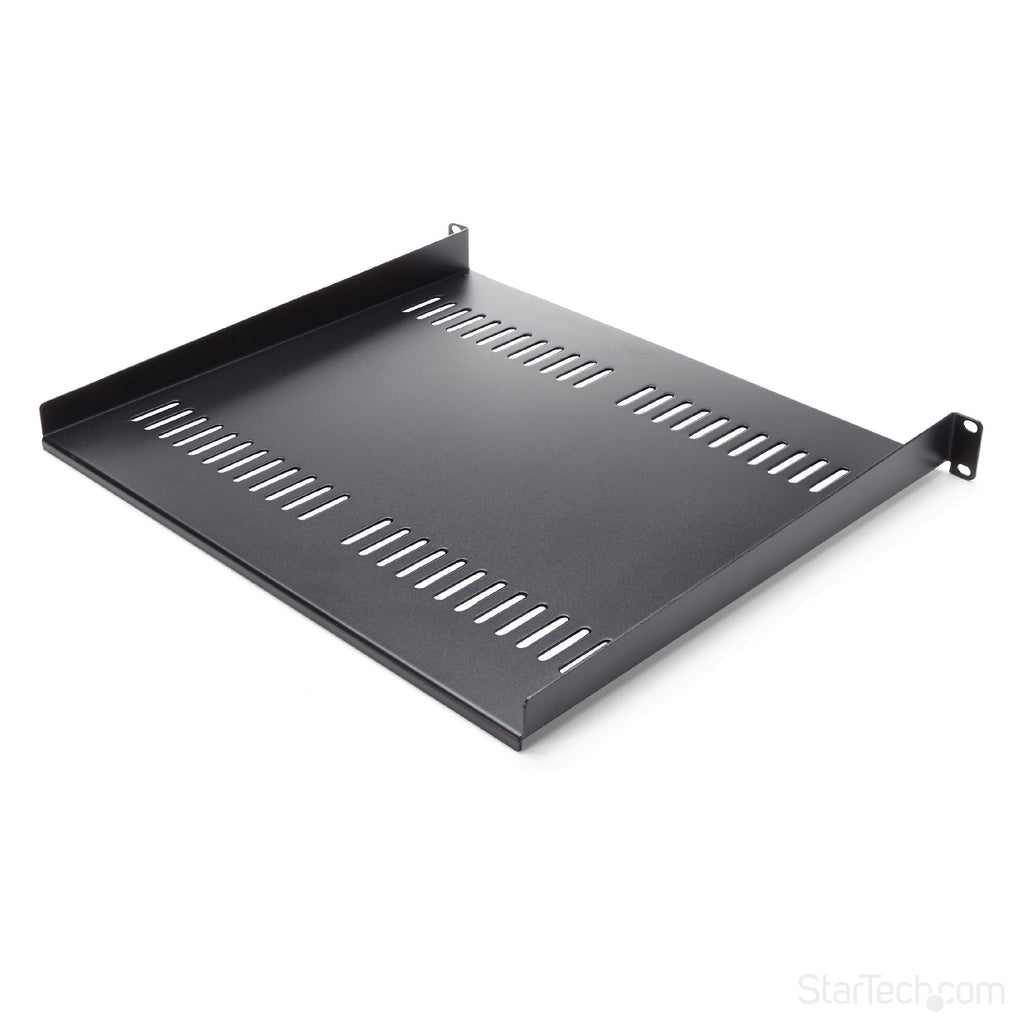

The StarTech CABSHELF116V is a 1U extra-deep vented rack shelf designed to support larger non-rackmount equipment in 19-inch server racks, network cabinets, and AV enclosures. With a 16-inch depth, heavy-duty steel construction, and a vented base for improved airflow, this shelf is ideal for DVRs, NVRs, UPS units, audio gear, test equipment, and oversized network devices.

Its extended depth makes it perfect for standard-depth racks and cabinets where additional support space is required.

Key Features

• 1U fixed rack shelf for 19" EIA-310 standard racks

• Extra-deep 16" platform for larger equipment

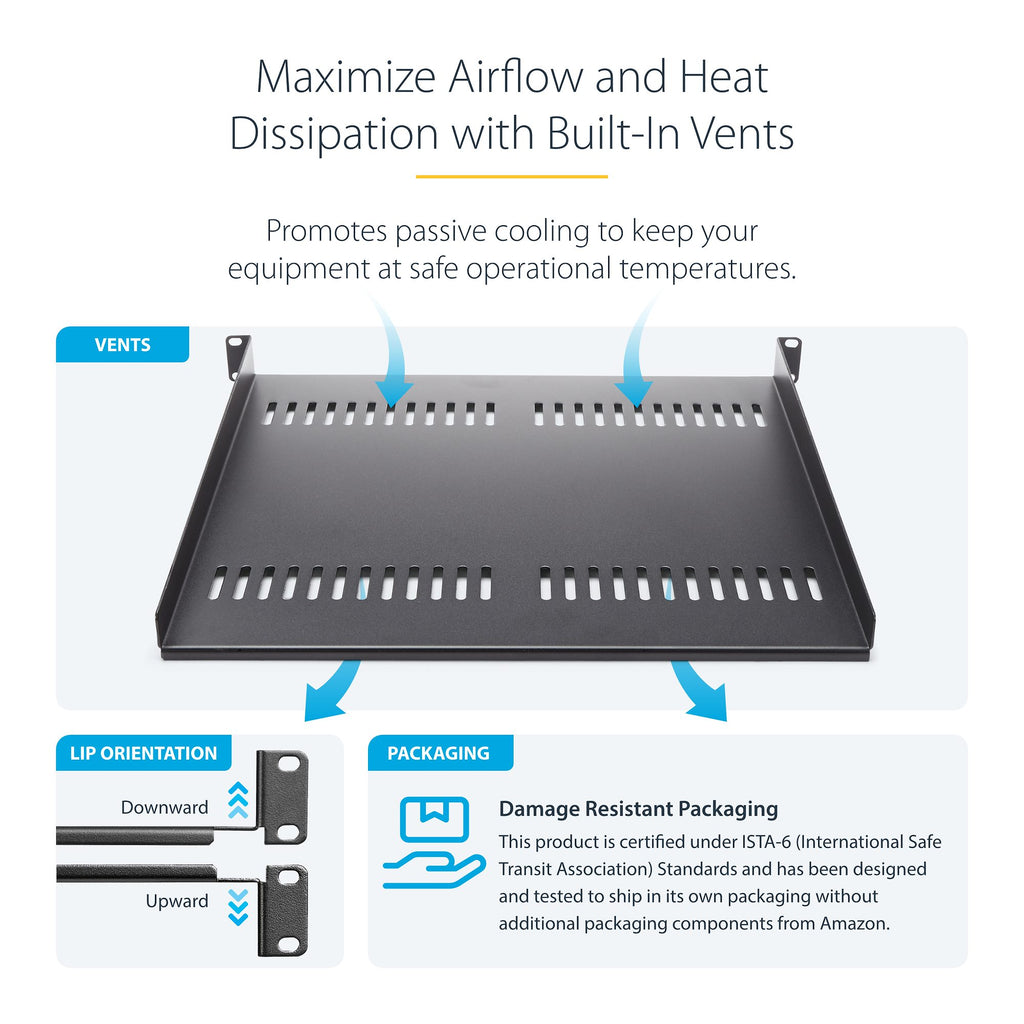

• Vented steel base improves airflow and cooling

• Supports up to 44 lb (20 kg)

• Ideal for DVRs, NVRs, UPS units, AV gear, and larger devices

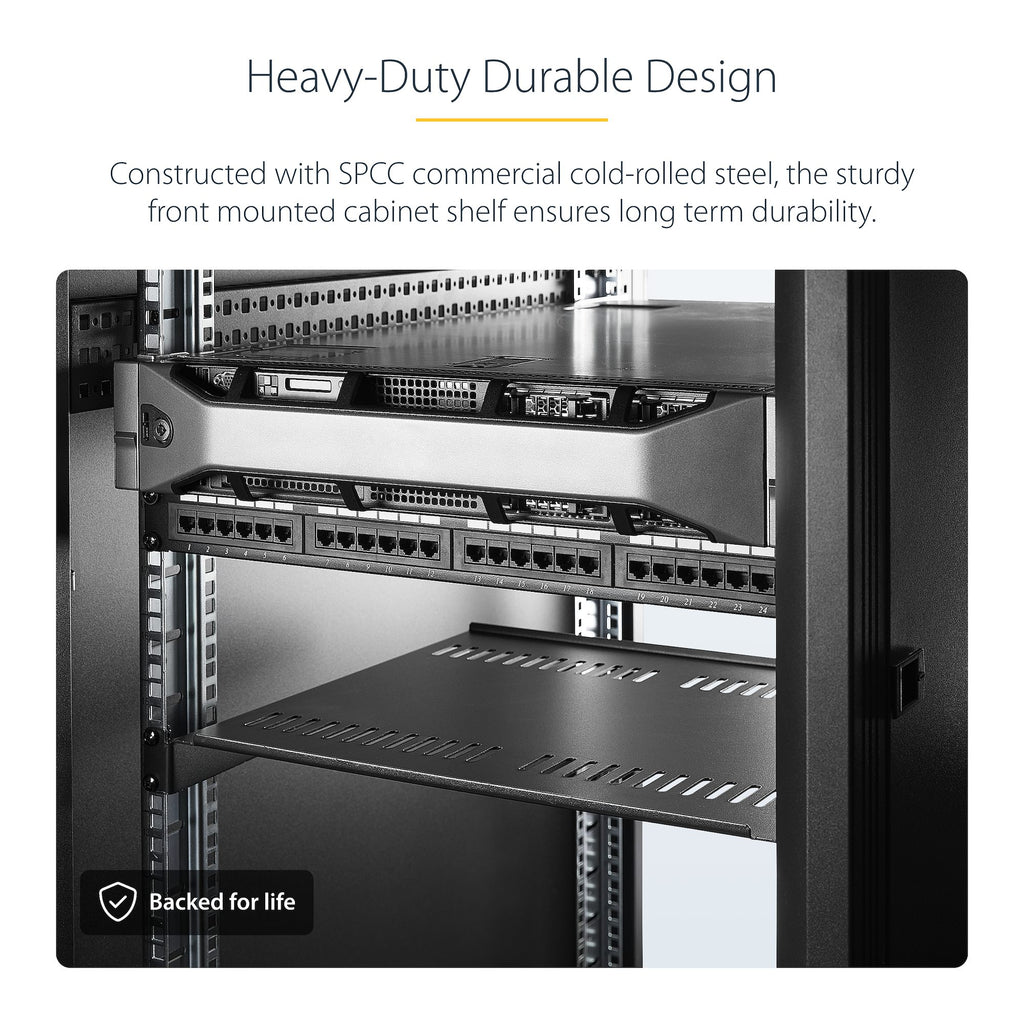

• Durable black powder-coated steel

• Compatible with server, network, and AV racks

Technical Specifications

• Rack Size: 19" EIA-310 standard

• Height: 1U

• Depth: 16 in

• Material: Steel

• Finish: Black powder coat

• Ventilation: Fully vented base

• Weight Capacity: 44 lb (20 kg)

• Mounting Hardware: Standard rack screws (varies by distributor)

• Warranty: StarTech Lifetime Warranty

Ideal Use Cases

• Supporting larger non-rackmount equipment

• Server rooms and network closets

• AV racks and media cabinets

• DVR/NVR security systems

• UPS modules and power equipment

• MSP field deployments

• Test equipment and tools

What's Included

• CABSHELF116V Rack Shelf

• Mounting hardware (varies by distributor)

Compliance & Warranty

• EIA-310 rack standard

• StarTech Lifetime Warranty
