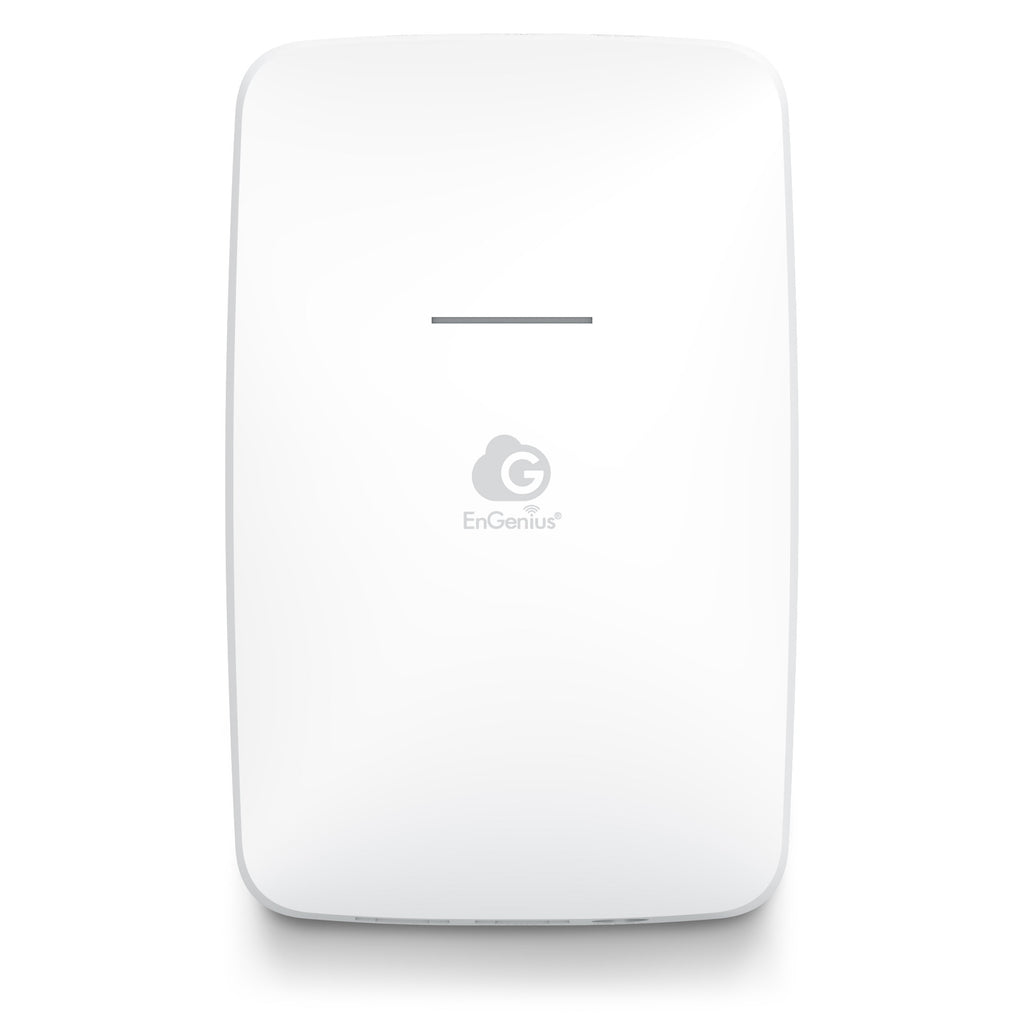

EnGenius ECW215 — Wi‑Fi 6 Cloud‑Managed Wall‑Plate Access Point

2×2 Wi‑Fi 6 • In‑Room Connectivity • Built‑In 2‑Port Gigabit Switch with PoE‑Out

The EnGenius ECW215 is a compact, in‑room Wi‑Fi 6 (802.11ax) wall‑plate access point designed for hospitality, student housing, senior living, MDUs, and classrooms requiring both wireless and wired connectivity from a single, elegant wall‑mounted device. Powered by Qualcomm® and managed through EnGenius Cloud (license‑free), the ECW215 delivers fast, reliable Wi‑Fi 6 performance with 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz) throughput, plus a built‑in 2‑port Gigabit switch for VoIP phones, IPTV, or wired clients.

With support for PoE input (802.3af/at) and PoE‑out (PSE) on LAN2, the ECW215 simplifies room deployments by powering downstream devices directly from the wall plate. It’s engineered for high‑density environments where seamless roaming, VLAN segmentation, and in‑room media casting are essential.

Key Features

• Dual‑band Wi‑Fi 6 (2×2:2) with up to 1,200 Mbps (5 GHz) + 574 Mbps (2.4 GHz) throughput

• Built‑in 2‑port Gigabit switch with PoE‑out (PSE) on LAN2 for VoIP/IPTV devices

• Cloud‑managed with no licensing fees (EnGenius Cloud)

• SmartCasting for secure in‑room media streaming to TVs (hospitality/student housing)

• Mesh support for simplified deployment and self‑healing coverage

• PoE input (802.3af/at) for flexible installation up to 100m/328 ft

• Ideal for hotels, dorms, senior living, MDUs, and classrooms

• Model: ECW215

Technical Specifications

• Wi‑Fi Standard: 802.11ax (Wi‑Fi 6)

• Radios:

  • 2.4 GHz: up to 574 Mbps (2×2 HE40)

  • 5 GHz: up to 1,200 Mbps (2×2 HE80)

• MIMO: 2×2 SU‑MIMO & MU‑MIMO on both bands

• Ports:

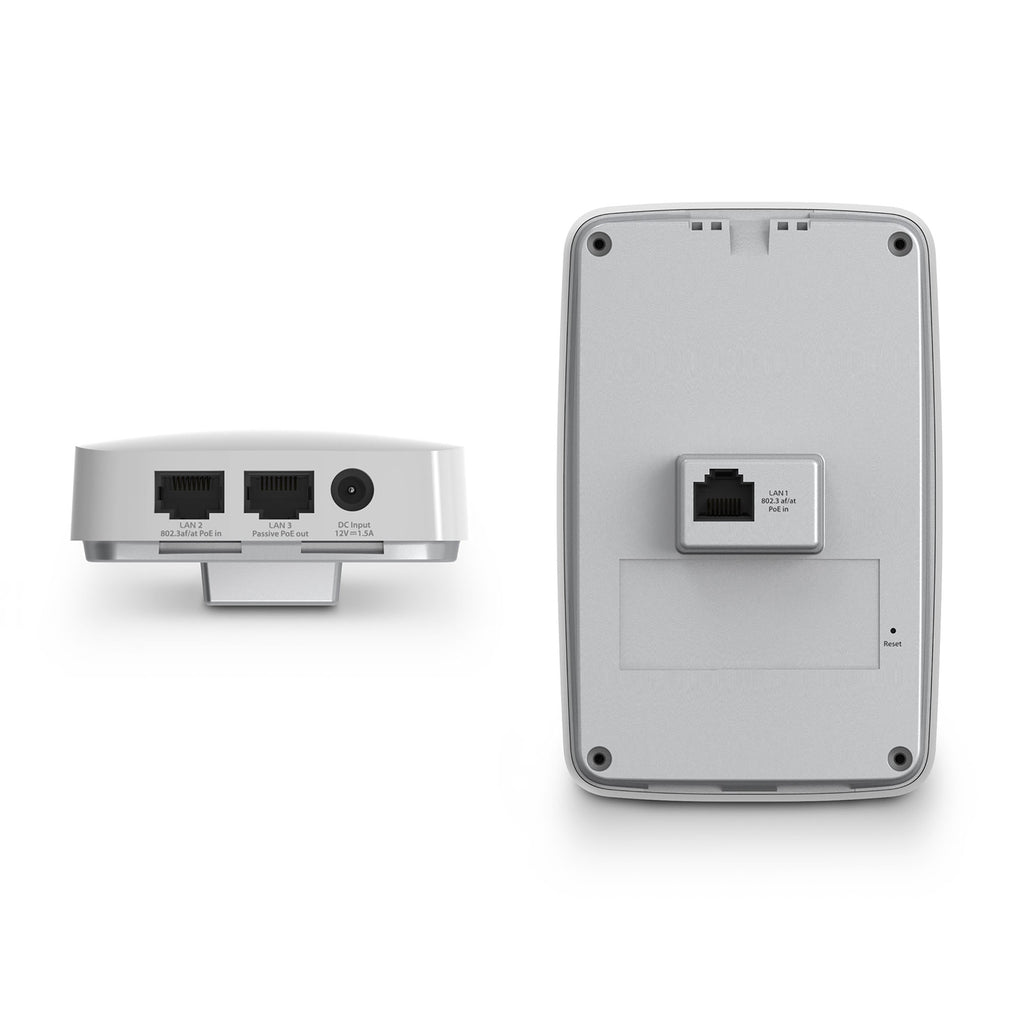

  • 2 × Gigabit Ethernet (LAN1 PoE‑in, LAN2 PoE‑out)

  • 1 × DC jack

• PoE: 802.3af/at input; PoE‑out requires 802.3at source

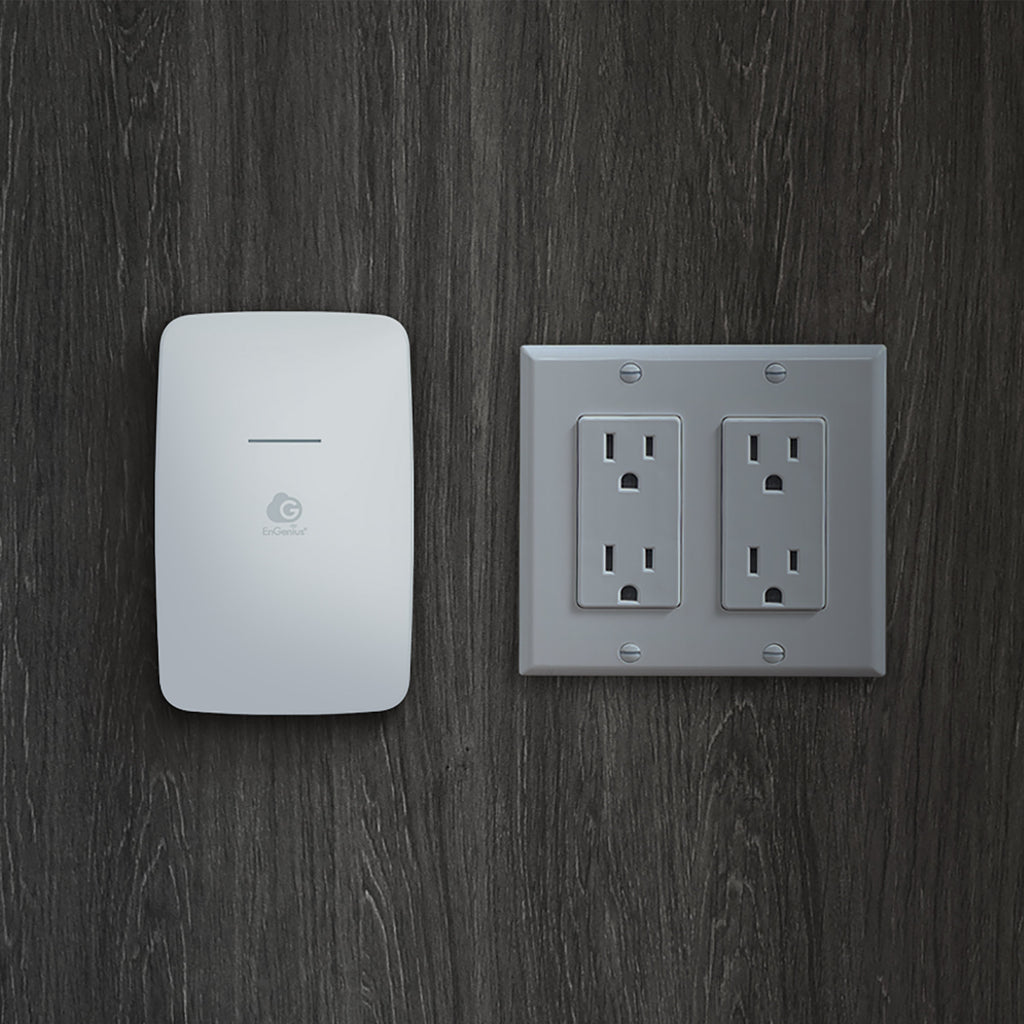

• Mounting: Wall‑plate / junction box mounting options

• Management: EnGenius Cloud (web + mobile app)

• LED: Single dual‑color status LED (green/blue)

Ideal Use Cases

• Hotel rooms & hospitality deployments

• Student housing & dormitories

• Senior living & assisted living

• Multi‑tenant dwellings (MDUs)

• Classrooms & campus buildings

• Any environment requiring in‑room wired + wireless connectivity

What’s Included

(Based on EnGenius documentation)

• ECW215 Access Point

• Wall/Junction Box Mounting Plates

• Quick Start Guide

Compliance & Warranty

• Compliance: FCC

• Warranty: EnGenius Limited Hardware Warranty
